PRODUCT DATA SHEET
JZ2166 / GZ2166
POLYURETHANE ADHESIVE
TWO-COMPONENT, SOLVENT-BASED
DESCRIPTION
●Specially designed for plastic/plastic, aluminum/plastic lamination.
●With resistance to sterilization of 135℃/30mins for AL/PLASTIC composite.
●As fine performance of weight coating, Anti-heat, anti-steaming & boiling and resistance to chemical attack.
●Applicable to the boil-in-bag pouch packaging, PET for the outer layer, like penguin pouch packaging.
PHYSICAL PROPERTIES | ||
Type | JZ2166(Main agent) | GZ2166(Curing agent) |
Composition | -OH | -NCO |
Appearance | Clear or light yellow viscous liquid | Clear or light yellow viscous liquid |
Solid content (%) | 66±2 | 75±2 |
Viscosity at 25 °C(mPa.s) | 5000±1000 | 2000±1000 |
Solvent | Ethyl acetate | Ethyl acetate |
Mixing ratio (quality) | 20 | 3.5(3.5~4.5) |
Shelf life at 15 ~ 25°C(Months) | 12 | 12 |
REFERENCED DILUTION RATIO(QUALITY RATIO) | |||||
Solid content of glue to be required (%) | 35 | 32 | 30 | 28 | 25 |
Main agent (kg) | 20 | 20 | 20 | 20 | 20 |
Curing agent (kg) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
Ethyl acetate(kg) | 21.70 | 25.95 | 29.20 | 33.00 | 39.80 |
ADHESIVE PROPERTIES | ||
Structures of Composite material | Peeling strength (N/15mm) | |
| Before steaming & boiling | After steaming & boiling |
PET/AL | PET torn | PET torn |
AL/PA | 6.0~7.0 | 5.5~6.0 |
PA/RCPP | 7.0~8.0 | 7.0~7.5 |
AL/RCPP | 4.5~5.5 | 4.0~5.0 |
Note: The amount of glue (dry basis) is 4-5g/m2 | ||

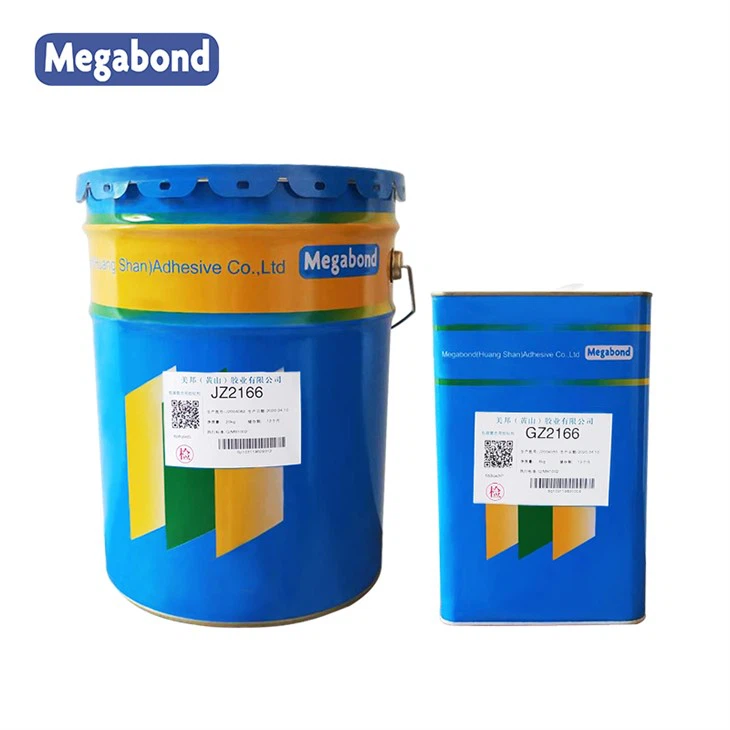

PACKAGING
| JZ2166 Main agent | 20 kg/Bucket |
| GZ2166 Curing agent | 4 kg/Bucket |
FAQ：
1.Where is your factory located?
In industry area,Huangshan city,China.
2.When did your factory established?
Since 1994.
3.What is your main market?
South America, Africa, The middle east, and the southeast Asia.
4.How many square meters of your factory?
More than 10000 square meter.
5.How many workers in your factory?
110 workers.
6.What type of your product?
We are one of the most professional and biggest manufactory of laminating adhesives for plastic films packaging in China. Which made by polyurethane.
7.Where is your product use in?
In coffee/tea packaging bags, fruit vent bag, biscuit snack packaging bags, pet food bags, popcorn packaging bags, retort pouch, special shape bags, stand up pouch for juice, stand up zipper pouch, etc.
