PRODUCT DATA SHEET
JZ3150 / GZ3150
POLYURETHANE ADHESIVE
TWO-COMPONENT, SOLVENT-BASED
DESCRIPTION
● Specially designed for plastic/plastic, aluminum/plasticlamination.
●With resistance to sterilization of 135℃/30mins for Al/plastic composite.
● Fine appearance and performance of weight coating, Anti-heat, anti-steaming & boiling and resistance to chemical attack.
● Applicable to the boil-in-bag food packaging, PET film for the shell.
●Product conforms to the National food safety standards -GB9685 and regulations of adhesive for food package stipulated by China adhesive industry association.
PHYSICAL PROPERTIES | ||
Type | JZ3150(Main agent) | GZ3150(Curing agent) |
Composition | -OH | -NCO |
Appearance | Clear or light yellow viscous liquid | Clear or light yellow viscous liquid |
Solid content (%) | 50±2 | 75±2 |
Viscosity at 25 °C(mPa.s) | 2500±1000 | 2000±1000 |
Solvent | Ethyl acetate | Ethyl acetate |
Mixing ratio (quality) | 18 | 3.6 |
Shelf life at 15 ~ 25°C(Months) | 12 | 12 |
| REFERENCED DILUTION RATIO(QUALITY RATIO) | ||||
| Solid content of glue to be required(%) | 35 | 30 | 25 | 20 |
| Main agent (kg) | 18 | 18 | 18 | 18 |
| Curing agent (kg) | 3.6 | 3.6 | 3.6 | 3.6 |
| Ethyl acetate(kg) | 11.8 | 17.4 | 25.2 | 36.9 |
ADHESIVE PROPERTIE | ||
Structures of Composite material | Peeling strength (N/15mm) | |
| Before steaming & boiling | After steaming & boiling |
PET/AL | PET torn | PET torn |
AL/PA | 6.0~7.0 | 5.5~6.0 |
PA/RCPP | 7.0~8.0 | 7.0~7.5 |
AL/RCPP | 4.5~5.5 | 4.0~5.0 |
Note: The amount of glue (dry basis) is 4-5g/m2 | ||
PACKAGING

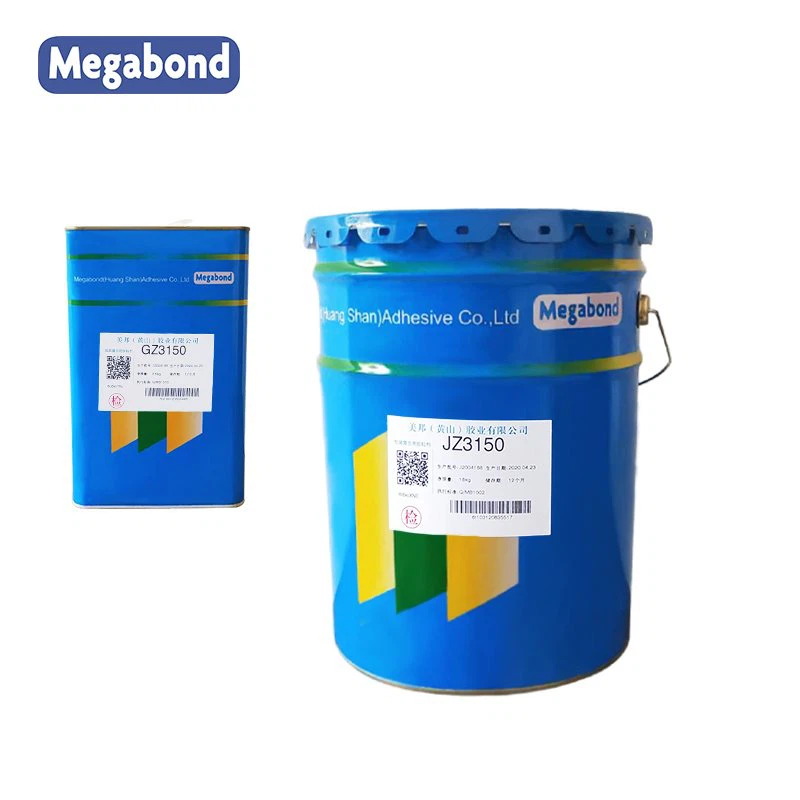

| JZ3150 Main agent | 18 kg/Bucket |
| GZ3150 Curing agent | 3.6 kg/Bucket |
